TEM Pure Silicon Grids – 3×3 Windows

$489.25

3×3 windows
2.9 mm diameter/hexagonal + 0.1 mm thick
Sold in packs of 10

US100H-A05Q33A

$489.25

46 in stock (can be backordered)

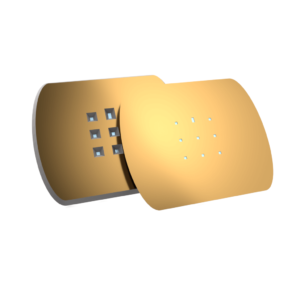

Material: Amorphous Silicon | Thickness: 5 nm | Porosity: Nonporous | Window Size: (8) 50x50 µm + (1) 50x100 µm | Chip Frame: 2.9 mm diameter + 0.1 mm thick

US100H-A09Q33

$489.25

39 in stock (can be backordered)

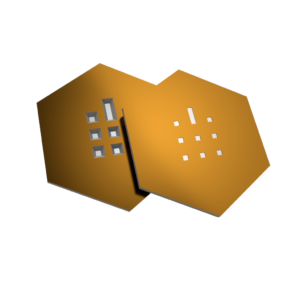

Material: Amorphous Silicon | Thickness: 9 nm | Porosity: Nonporous | Window Size: (8) 100x100 µm + (1) 100x350 µm | Chip Frame: 2.9 mm hexagonal + 0.1 mm thick

US100H-A15Q33

$489.25

27 in stock (can be backordered)

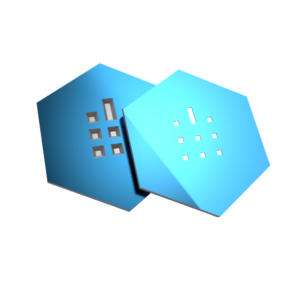

Material: Amorphous Silicon | Thickness: 15 nm | Porosity: Nonporous | Window Size: (8) 100x100 µm + (1) 100x350 µm | Chip Frame: 2.9 mm hexagonal + 0.1 mm thick

US100H-C25Q33A

$489.25

12 in stock (can be backordered)

Material: Single-crystal (1-0-0) Silicon | Thickness: 25 nm | Porosity: Nonporous | Window Size: (8) 50x50 µm + (1) 50x100 µm | Chip Frame: 2.9 mm diameter + 0.1 mm thick

Material

Thickness

Window Size

Chip Frame

Count

Clear

SKU: US100- Categories: Environmental & Material Sciences, TEM & Cryo-EM Grids

Applications

Additional information

Primary Application	Electron Microscopy
Secondary Applications	High-resolution EM, Sample Deposition
Material	Amorphous Silicon, Single-crystal (1-0-0) Silicon
Thickness	5 nm, 9 nm, 15 nm, 25 nm
Porosity	Nonporous
Window Size	(8) 50×50 µm + (1) 50×100 µm, (8) 100×100 µm + (1) 100×350 µm
Chip Frame	2.9 mm diameter + 0.1 mm thick, 2.9 mm hexagonal + 0.1 mm thick
