TEM Pure Silicon Grids – Two Slot Windows

Name: TEM Pure Silicon Grids - Two Slot Windows
SKU: TEM-US-L
Availability: InStock

$506.40

US100H-A05L

$506.40

41 available (can be backordered)

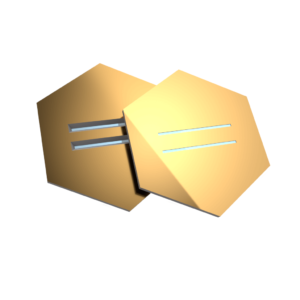

Material: Amorphous Silicon | Thickness: 5 nm | Porosity: Nonporous | Window Size: (2) 50x1,500 µm | Chip Frame: 2.9 mm hexagonal + 0.1 mm thick

US100H-A09L

$506.40

51 available (can be backordered)

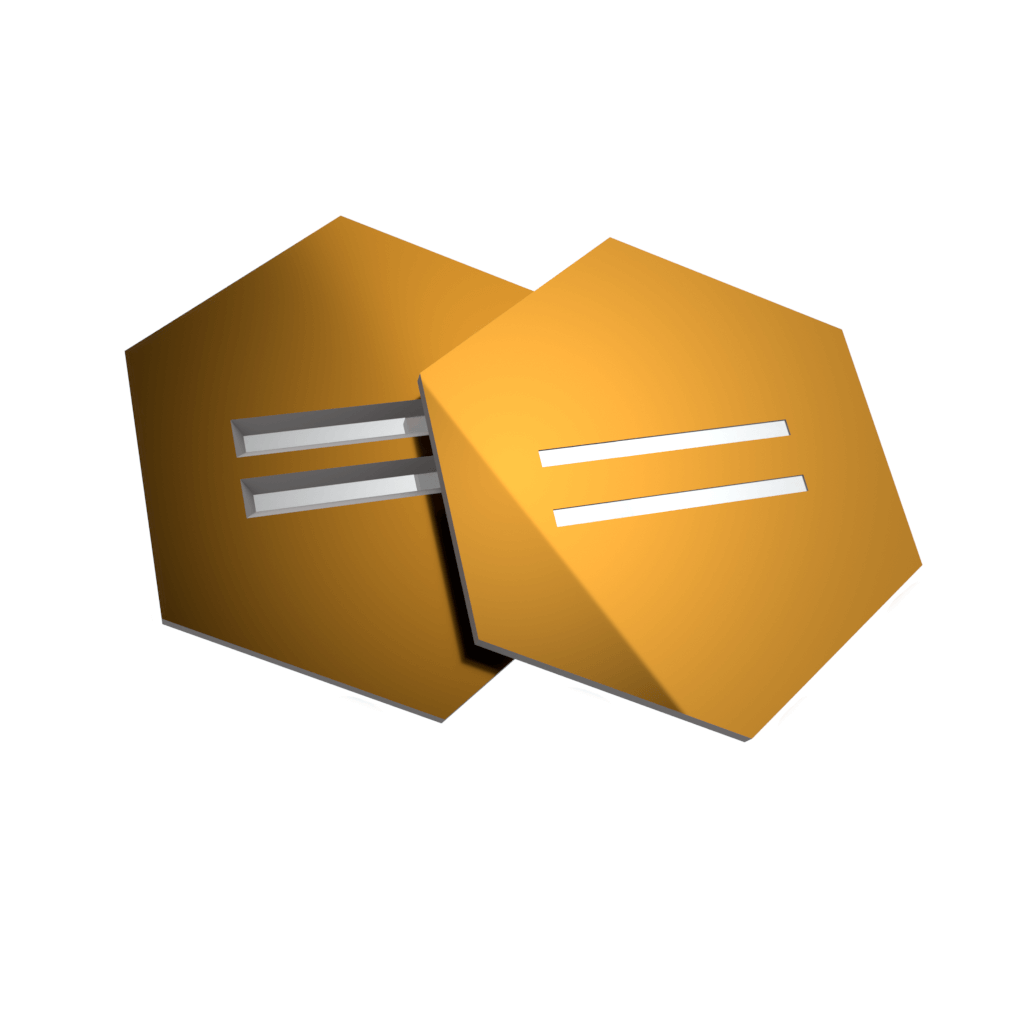

Material: Amorphous Silicon | Thickness: 9 nm | Porosity: Nonporous | Window Size: (2) 100x1,500 µm | Chip Frame: 2.9 mm hexagonal + 0.1 mm thick

US100H-A15L

$506.40

23 available (can be backordered)

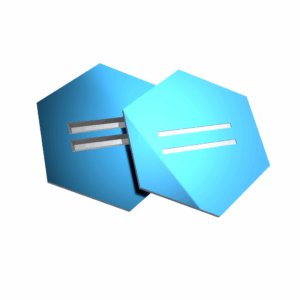

Material: Amorphous Silicon | Thickness: 15 nm | Porosity: Nonporous | Window Size: (2) 100x1,500 µm | Chip Frame: 2.9 mm hexagonal + 0.1 mm thick

Thickness

Window Size

Count

Clear

Additional information

Material	Amorphous Silicon
Thickness	5 nm, 9 nm, 15 nm
Porosity	Nonporous
Window Size	(2) 50×1,500 µm, (2) 100×1,500 µm
Chip Frame	2.9 mm hexagonal + 0.1 mm thick
Primary Application	Electron Microscopy
Secondary Applications	High-resolution EM, Sample Deposition
