TEM Silicon Nitride Grids - 3x3 Windows

SN100H-A20Q33_Box

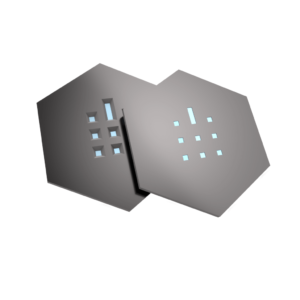

TEM Silicon Nitride Grids – 3×3 Windows

$185.40 – $386.25

Sold in packs of 10

SN100H-P20Q33

$386.25

47 in stock (can be backordered)

Material: Nanoporous Silicon Nitride | Thickness: 20 nm | Porosity: Nanoporous | Window Size: (8) 100x100 µm + (1) 100x350 µm | Pore Size: 30 nm | Chip Frame: 2.9 mm diameter + 0.1 mm thick

SN100H-A05Q33A

$386.25

13 in stock (can be backordered)

Material: Silicon Nitride | Thickness: 5 nm | Porosity: Nonporous | Window Size: (8) 50x50 µm + (1) 50x100 µm | Pore Size: 30 nm | Chip Frame: 2.9 mm hexagonal + 0.1 mm thick

SN100H-A10Q33

$247.20

45 in stock (can be backordered)

Material: Silicon Nitride | Thickness: 10 nm | Porosity: Nonporous | Window Size: (8) 100x100 µm + (1) 100x350 µm | Pore Size: 30 nm | Chip Frame: 2.9 mm hexagonal + 0.1 mm thick

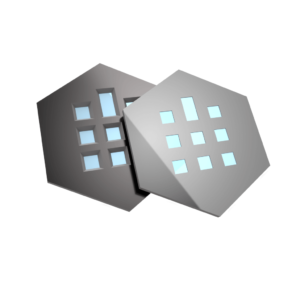

SN100H-A10Q33B

$247.20

62 in stock (can be backordered)

Material: Silicon Nitride | Thickness: 10 nm | Porosity: Nonporous | Window Size: (8) 250x250 µm + (1) 250x500 µm | Pore Size: 30 nm | Chip Frame: 2.9 mm hexagonal + 0.1 mm thick

SN100H-A20Q33

$206.00

41 in stock (can be backordered)

Material: Silicon Nitride | Thickness: 20 nm | Porosity: Nonporous | Window Size: (8) 100x100 µm + (1) 100x350 µm | Pore Size: 30 nm | Chip Frame: 2.9 mm hexagonal + 0.1 mm thick

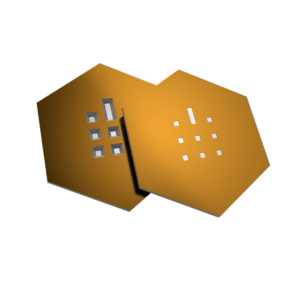

SN100H-A50Q33

$185.40

25 in stock (can be backordered)

Material: Silicon Nitride | Thickness: 50 nm | Porosity: Nonporous | Window Size: (8) 100x100 µm + (1) 100x350 µm | Pore Size: 30 nm | Chip Frame: 2.9 mm hexagonal + 0.1 mm thick

Material

Thickness

Porosity

Window Size

Chip Frame

Count

Clear

SKU: SN100X- Categories: Environmental & Material Sciences, TEM & Cryo-EM Grids

Applications

Additional information

Primary Application	Electron Microscopy
Secondary Applications	Cryo-EM, High-resolution EM, Sample Deposition
Material	Nanoporous Silicon Nitride, Silicon Nitride
Thickness	5 nm, 10 nm, 20 nm, 50 nm
Porosity	Nanoporous, Nonporous
Window Size	(8) 50×50 µm + (1) 50×100 µm, (8) 100×100 µm + (1) 100×350 µm, (8) 250×250 µm + (1) 250×500 µm
Pore Size	30 nm
Chip Frame	2.9 mm diameter + 0.1 mm thick, 2.9 mm hexagonal + 0.1 mm thick
