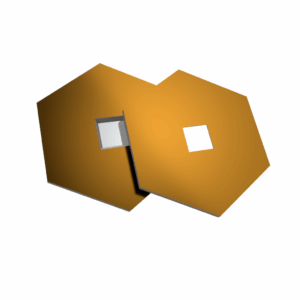

TEM Silicon Nitride Grids – Single Window

Price range: $185.40 through $386.25

Sold in packs of 10

SN100-A20MP2Q05

$386.25

Out of stock

Material: Microporous Silicon Nitride | Thickness: 20 nm | Porosity: Microporous with labeled grid | Window Size: (1) 500 µm | Pore Size: 2 µm | Chip Frame: 2.9 mm diameter + 0.1 mm thick

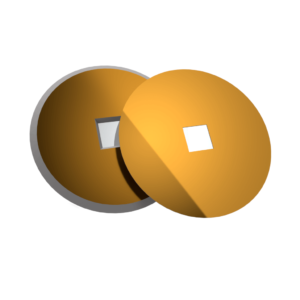

SN100-A50MP2Q05

$386.25

Only 6 left!

Material: Microporous Silicon Nitride | Thickness: 50 nm | Porosity: Microporous with labeled grid | Window Size: (1) 500 µm | Pore Size: 2 µm | Chip Frame: 2.9 mm diameter + 0.1 mm thick

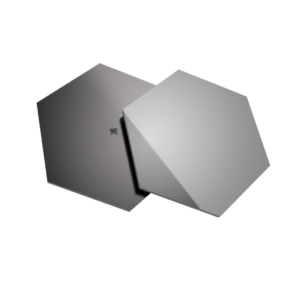

SN100H-A05Q00

$386.25

11 available (can be backordered)

Material: Silicon Nitride | Thickness: 5 nm | Porosity: Nonporous | Window Size: (1) 25 µm | Pore Size: n/a | Chip Frame: 2.9 mm hexagonal + 0.1 mm thick

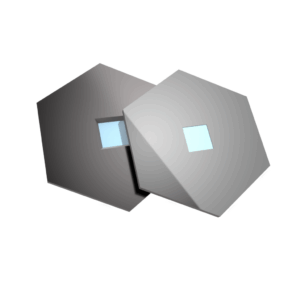

SN100H-A20Q05

$206.00

42 available (can be backordered)

Material: Silicon Nitride | Thickness: 20 nm | Porosity: Nonporous | Window Size: (1) 500 µm | Pore Size: n/a | Chip Frame: 2.9 mm hexagonal + 0.1 mm thick

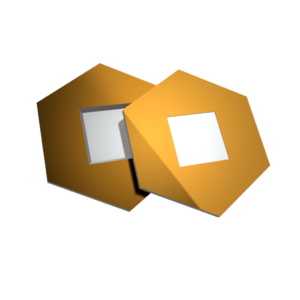

SN100H-A50Q10

$185.40

47 available (can be backordered)

Material: Silicon Nitride | Thickness: 50 nm | Porosity: Nonporous | Window Size: (1) 1,000 µm | Pore Size: n/a | Chip Frame: 2.9 mm hexagonal + 0.1 mm thick

SN100H-A50Q05

$185.40

58 available (can be backordered)

Material: Silicon Nitride | Thickness: 50 nm | Porosity: Nonporous | Window Size: (1) 500 µm | Pore Size: n/a | Chip Frame: 2.9 mm hexagonal + 0.1 mm thick

SN100H-A50Q01

$185.40

24 available (can be backordered)

Material: Silicon Nitride | Thickness: 50 nm | Porosity: Nonporous | Window Size: (1) 100 µm | Pore Size: n/a | Chip Frame: 2.9 mm hexagonal + 0.1 mm thick

Material

Thickness

Porosity

Window Size

Pore Size

Chip Frame

Count

Clear

SKU: TEM-SN-Q Categories: Environmental & Material Sciences, TEM & Cryo-EM Grids

Applications

Additional information

Primary Application	Electron Microscopy
Secondary Applications	Cryo-EM, High-resolution EM, Sample Deposition
Material	Microporous Silicon Nitride, Silicon Nitride
Thickness	5 nm, 20 nm, 50 nm
Porosity	Microporous with labeled grid, Nonporous
Window Size	(1) 25 µm, (1) 100 µm, (1) 500 µm, (1) 1,000 µm
Pore Size	n/a, 2 µm
Chip Frame	2.9 mm diameter + 0.1 mm thick, 2.9 mm hexagonal + 0.1 mm thick
