X-Ray Silicon Nitride Windows – Single Window

Name: X-Ray Silicon Nitride Windows - Single Window
SKU: XRAY
Availability: InStock

Price range: $450.00 through $600.00

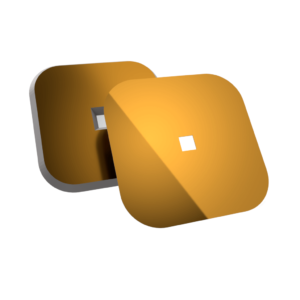

X05-A50Q05

$450.00

35 in stock (can be backordered)

Material: Silicon Nitride | Thickness: 50 nm | Porosity: Nonporous | Window Size: (1) 500 µm | Chip Frame: 5x5 mm square + 0.3 mm thick

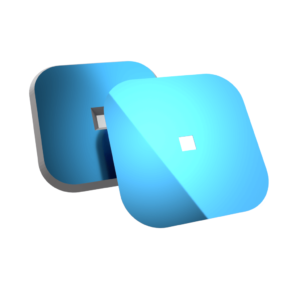

X05-A100Q05

$450.00

65 in stock (can be backordered)

Material: Silicon Nitride | Thickness: 100 nm | Porosity: Nonporous | Window Size: (1) 500 µm | Chip Frame: 5x5 mm square + 0.3 mm thick

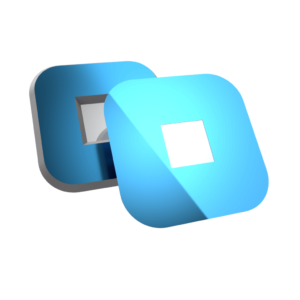

X05-A100Q10

$450.00

51 in stock (can be backordered)

Material: Silicon Nitride | Thickness: 100 nm | Porosity: Nonporous | Window Size: (1) 1,000 µm | Chip Frame: 5x5 mm square + 0.3 mm thick

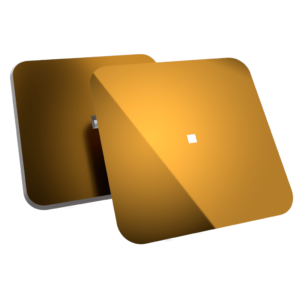

X10-A50Q05

$600.00

9 in stock (can be backordered)

Material: Silicon Nitride | Thickness: 50 nm | Porosity: Nonporous | Window Size: (1) 500 µm | Chip Frame: 10x10 mm square + 0.3 mm thick

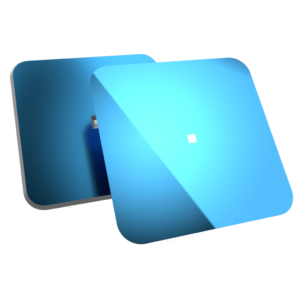

X10-A100Q05

$600.00

19 in stock (can be backordered)

Material: Silicon Nitride | Thickness: 100 nm | Porosity: Nonporous | Window Size: (1) 500 µm | Chip Frame: 10x10 mm square + 0.3 mm thick

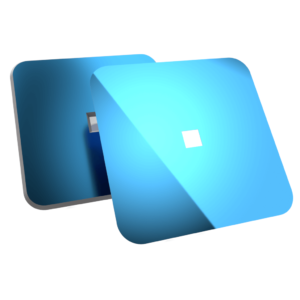

X10-A100Q10

$600.00

9 in stock (can be backordered)

Material: Silicon Nitride | Thickness: 100 nm | Porosity: Nonporous | Window Size: (1) 1,000 µm | Chip Frame: 10x10 mm square + 0.3 mm thick

Thickness

Window Size

Chip Frame

Count

Clear

Additional information

Primary Application	X-Ray Microscopy
Secondary Applications	Sample Deposition
Material	Silicon Nitride
Thickness	50 nm, 100 nm, 200 nm
Porosity	Nonporous
Window Size	(1) 500 µm, (1) 1,000 µm, (1) 1,500 µm, (1) 2,500 µm
Chip Frame	10×10 mm square + 0.3 mm thick, 5×5 mm square + 0.3 mm thick
